Features:

• Available for Use in Power Ratings from 200W to 1000W

• Operates with Controllers from Several IC Manufacturers

• Ranges from 100μH to 1000μH Under Full Load and are Designed for 100kHz Operation

• Designed Using the Industry Standard Input Voltage Range 85VAC - 265VAC at 50/60Hz.

• Uses a Toroidal Geometry to Allow the use of Thicker Wire to Decrease DC Resistance and Yield Higher Current Capacity

• Uses Industry Standard Vertical Through-Hole Mounting Configurations and have an Operating Temperature Range of 20°C to +105°C

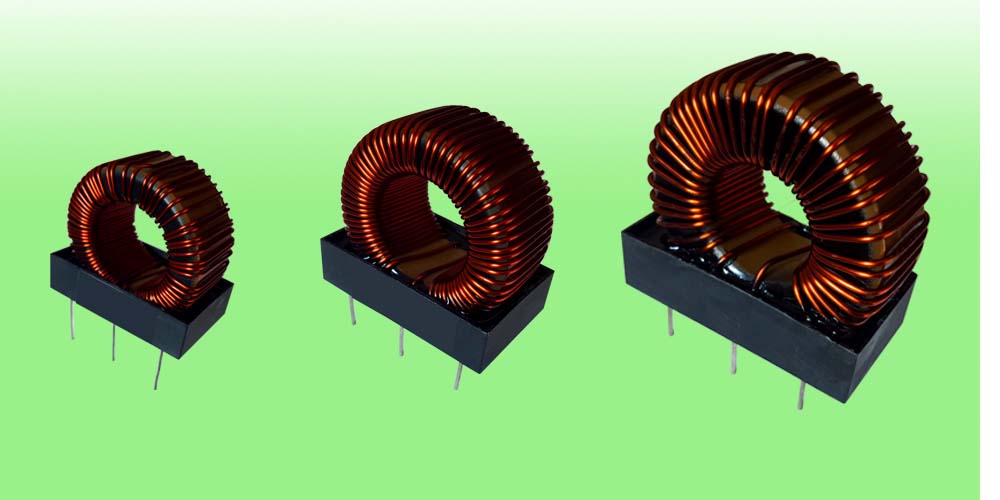

PC Mounted PFC Inductor, Toroidal Core, vertical mount

Fule works with its customers to optimize a Power Factor Correction (PFC) solution for any specific application.  In many cases, audible noise is not a problem.  For example, when the power supply is housed in an enclosure with forced air,  PFC Inductor noise is not detectable and allows a lower cost solution.  Also, if size is not the highest priority, there are many available options.

 Fule can provide additional windings on the PFC Inductor to supply power for the PFC control circuitry.  Using a voltage doubler circuit with this bias winding provides a semi-regulated output that is quite stable over the entire duty cycle range.
