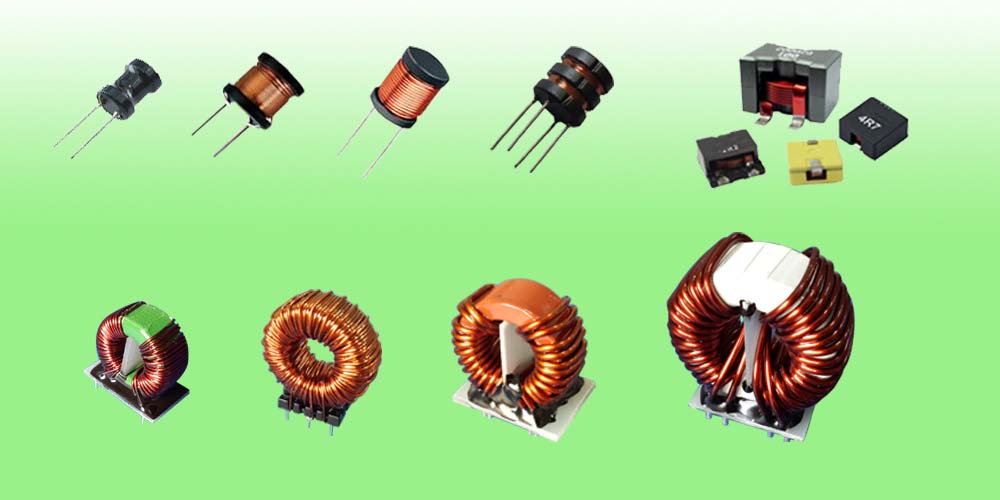

Our standard high current through hole mounting power inductors are available in two families, listed below. Click on the product family that interests you to review a detailed PDF spec sheet, or browse them all. If our standard products don’t fit your requirements, contact us to review the wide range of custom sizes and shapes available.

Inductors are used in a wide variety of applications, including but not limited to:

• High frequency switching power supplies where the power inductors are used to minimize the common ripple voltage and current.

• Analog circuits and signal processing.

• In conjunction with capacitors and other components to form tuned circuits which can emphasize or filter out specific signal frequencies.

• Filters for reducing stray harmonics

Features:

• Radial Leaded

• High DC Current Bias Capability

• 125 Degrees C Rating (ambient plus rise)

• Large Range of Energy Storage Capacity for Output Inductors

• Small Footprint


• High DC Current Bias Capability

• Swinging Inductance Ideal for Switchmode Output Power Inductors

• Low radiated Field Due to Closed Magnetic Path

• 130 Degree C Rise (ambient plus rise)

• UL94V-0 Header

• Vertical Design for Smaller Through Hole Inductor PC Footprint
